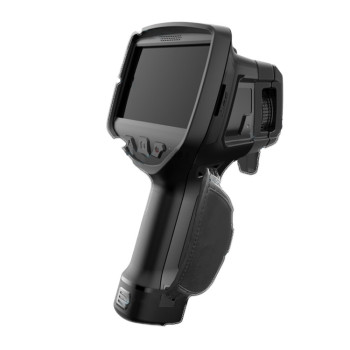

High performance Industrial Temperature Imager handheld infrared camera DP3V

High performance Industrial Temperature Imager handheld infrared camera DP3V
High performance Industrial Temperature Imager handheld infrared camera DP3VHigh performance Industrial Temperature Imager handheld infrared camera DP3VHigh performance Industrial Temperature Imager handheld infrared camera DP3V
group name
Handheld Thermal Camera
Min Order
1 piece
brand name
THERMEYE Thermal Camera Manufacturer
model
DP3V
update time
Wed, 04 Aug 2021 17:07:57 GMT

Paramtents

  • Detector VOX

  • Resolution/Pixel Spacing 384×288

  • Temperature Resolution <0.06°C(@30℃)

  • Spectral Range 7.5-14μm

  • Standard Lens 24°

  • Temperature Range -20°℃~150°C, 0°C~ 410℃

  • Laser Support

Packging & Delivery

  • Min Order1 piece

Briefing

Handheld thermal camera outdoors industrial intelligent grid

Detailed

Technical Specification
Name/Property
DP3V
Detector
VOX
Resolution
384×288
Standard Lens
24°,optional
Spectral Range
7.5-14μm
Thermal sensitivity
<0.06°C(@30℃)
Temperature measurement range
-20℃ to 450℃ (-4°F to 854°F)
Optional temperature measurement range
+300℃~+650℃,+300℃~+2000℃
Measurement accuracy
±2℃ or ±2% of reading
Digital camera
2560x1920,with led light
Laser
Support
Focus mode
Manual,motorized,auto-focusing
Color palette
Rainbow, iron oxide red, cold color,
black & white, white & black etc.10 types
Display screen
5 ″ full display screen 1021*764
Measurement regime
Support global,point,line,box temperature measurement method
High temperature alarm
High temperature tracking, low temperature tracking
Digital zoom
x1,x2,x4,x8
Picture in picture
Support
4G
Support
GPS
Support
Storage medium
Built-in 32G SD (above 4 thousand thermal image stored)
File format
JPG,PNG
Video format
H264
Video output
HDMI
Video interface
Micro HDMI
Power supply
Removable rechargeable 26650 battery
Power
DC 12V
Battery working time
>2 hours, support sleep mode
Product size
260mm×135mm×136mm
Weight
1.17kg ( including battery )
Working temperature
-20℃to 55℃
Storage temperature
-40℃ to 70℃
Humidity
< 95%RH, no condensation
